Asset Reliability Elusive P-F Interval

The Elusive P-F Interval

Murray Wiseman, Optimal Maintenance Decisions (OMDEC) Inc.
Daming Lin, University of Toronto
Naaman Gurvitz, Clockwork Solutions Inc.
Marton Dundics, The DEI Group

Summary

This paper discusses the P-F Interval for CBM decision making, its areas of usefulness, and those areas where it is inadequate as a predictive maintenance strategy. An alternative more general approach based on the EXAKT system is proposed. Two categories of decisions, the first driven by failure probability, the second driven by both failure probability and economics are described. Under the second category there are three possible decision strategies: cost minimization, availability maximization, and profitability (considering both cost and availability) maximization. A numerical example illustrates all four types of decisions. References (e.g. the hyperlinks on the labels of equations 4, 6, 10, and 11) to the Appendix provide further clarification where needed.

Background

When an item's functional capacity falls below its required capability we consider the asset to have "failed". Maintenance restores (reactive maintenance) or preserves (proactive maintenance) an item's functional capacity to a level exceeding that required by its users. Of the two types of maintenance, reactive or proactive, users specify the latter in certain situations. When the failure would interfere significantly with military readiness or with the goal to produce goods or services, safely, at a profit, and without violating environmental norms, the user will generally request some form of proactive maintenance.

To mitigate the consequences of failure, maintenance managers lean towards a proactive maintenance policy referred to as condition based maintenance or CBM. CBM is also known (with varying nuances) by the names "on-condition maintenance", "predictive maintenance" (PdM), "condition monitoring" (CM), "prognostics & health management" (PHM), "equipment health monitoring" (EHM), or simply "preventive maintenance (PM) inspections".

All of these refer to the gathering, processing, and analyzing of relevant data and observations, in order to make good and timely decisions on whether to:

1. Intervene immediately and conduct maintenance on an equipment at this time, or to


2. Plan to conduct maintenance within a specified time, or to


3. Defer the maintenance decision until the next CBM observation.

When managers and engineers select a task to manage a particular failure mode, they tend to consider CBM first. CBM, if applicable, is felt to be more "conservative", less costly, and less disruptive than TBM (time based maintenance). The graph of Figure 1 represents the well known theory of CBM. It defines CBM as the detection of a potential failure in a timely manner. P is the initial point at which an evolving failure can, using the current detection technology, be observed. The actual discovery of the potential failure occurs at the subsequent CBM inspection following P.


Figure 1: P-F Interval Principle for CBM

Discussion

The graph of Figure 1 illustrates constraints that the maintenance engineer should account for when designing a CBM program. The Net P-F interval must provide adequate time for the maintenance organization to react from the moment that a potential failure is detected. If it is practical to monitor at the frequency necessary for that to occur, the CBM program is said to be "technically feasible" or "applicable". In the worst case, according to the graph, if an inspection predates the potential failure by only a small amount, the subsequent inspection will still catch it in time, provided that the maintenance organization is capable of acting within the net P-F interval. If, in the long run, the repetitive proactive task succeeds, at an acceptable cost, in the avoidance or mitigation of the consequences of functional failure, the CBM program is said to be "effective" or “worthwhile”.

Figure 1 assumes that:

1. the potential failure set point, P, of an identifiable condition is known, and that


2. the P-F interval is known and is reasonably consistent (or its range of variation can be estimated), and that


3. it is practical to monitor the item at intervals shorter than the P-F interval

The classical CBM decision model of Figure 1 depends heavily, therefore, on prior knowledge of P and of the P-F interval. In RCM practice, a first approximation of the P-F Interval is gained through consensus by subject matter experts (ref. 1).

Obstacles to the application of Figure 1

Moubray, in ref. 1, suggests that if P is not known or if P-F cannot be approximated, CBM is not technically feasible. This would rule out a large number of currently active condition monitoring programs. Of the two concepts, “P” and “P-F”, it is the former that poses the greater challenge. Without “P” the P-F interval remains elusive. For this reason, before addressing the P-F interval, we must first discover when and how to declare a potential failure.

In Figure 1, “P” (the point at which currently available technology can detect a failing condition) is flagged at the attainment of a specified value of some condition indicator. Finding an indicator that broadcasts the state of a targeted failure mode is a challenge in itself. In all but the simplest situations, extracting a condition indicator (feature) that faithfully tracks diminishing failure resistance, related to a targeted failure mode (aka cause or mechanism), requires considerable knowledge based on, either:

1. an engineering model of the failure mechanism, or on


2. prior experience of failure or, preferably, potential failure.

In this discussion we will assume that a physics based model is unavailable. We will focus on the second, arguably, more general case. Once a condition indicator has been proposed that reflects deterioration in a component, we still have to set the decision (potential failure) point P, which, in the absence of a model that describes the physics of the failure mode, requires a methodology of some kind.

This (setting of the declaration level of the potential failure) is the problem encountered by many asset managers deluged with condition monitoring data. Unavoidable questions face any implementer of a CBM program. They are, "Where to set the potential failure?", and, "Which indicator, from among many monitored variables, should he use for this purpose?" When the physics of the situation are not well known (as is often the case), a “policy” for declaring a potential failure is far from obvious.

Why does Figure 1 and the determination of P and P-F stubbornly elude our grasp? The reasons are:

1. although it does not imply this, one may mistakenly infer from the graph of Figure 1 that, in general, a single condition indicator influences failure probability. Often, however, the problem is multi-dimensional. Where a significant variable is a linear combination of several risk influencing factors, this is a more complex function, which, generally, is not easy to force into the simple P-F model.


2. P and P-F can be random variables. Attempts to set these as fixed decision parameters often lead to frustration.


3. the declaration of P may not be constant for different working ages of the item. A high vibration level in an older item may indicate impending failure while the same vibration level in a younger item may be normal. In general we require some method of determining the three-way (age vs. CBM Indicator vs. reliability) relationship.


4. the P-F graphs of ref. 1 (reproduced below) address two extreme cases. In the first case ("Special Case 1" below), known as random behavior, there is no relationship between failure probability and age. (F₁, F₂, F₃ occurred at random ages.) In the second ("Special Case 2"), failure depends entirely on age. The following three paragraphs discuss the confusions that can arise from generalizing from these special cases.


1. Ref. 1 correctly describes the first case as a situation where conditional failure probability depends entirely on a condition indicator and is completely independent of age.


2. A confusion arises in the second case, where ref. 1 also indicates that failure depends on the condition indicator. Ref. 1 fails to mention, however, that the condition indicator (in this case, the tread depth on a tire) is a variable that is equivalent to the component’s age. Such an indicator is, in this simplistic case, a direct measure of accumulated external stress, which is the "working age". In fact, failure is often defined directly in terms of that measure. For example when the tread depth of an airplane tire reaches a specified minimum, it is considered to have failed because it can no longer preserve the function of the carcass “to be retreadable”. In complex (general) situations, the condition indicator or monitored variable, usually, is not equivalent to working age. Neither is it, generally speaking, so obviously related to potential failure. Implementers of CBM face the challenge of discovery of the precise relationship between relevant condition monitoring data and survival probability.


3. In practice, failure often depends both on age and on one or more condition indicators. (We might consider the age dependence as an averaging of a multitude of other undetermined factors.) For this general case more advanced methodologies are required with which to reveal the potential failure and to determine the P-F interval.

Making CBM decisions in EXAKT

EXAKT handles the multi-dimensionality of CBM, the probabilistic nature of failure, and the influence of working age, by providing two ways of deciding whether an item, component, or failure mode is in a potential failure state. Furthermore, if the item is not currently in a "P" state, EXAKT still provides an estimated time to failure or a remaining useful life estimate (RULE). The two decision processes can be categorized as:

1. a decision based on the combination of failure probability and the quantifiable consequences of the failure, and


2. a decision based solely on failure probability.

The first CBM decision making strategy will support decisions related to operational and non-operational consequences of failure whose economic impact can be estimated, for example, the failure of a component in a production line. The second method will apply to decisions that must be based strictly on probability. These include situations beyond the expected, whose failure costs are unknown or incalculable, such as where catastrophic environmental, health, and safety consequences are concerned. Managers use both types of decision methods regularly within the scope of their responsibilities. The flow diagram of Figure 2 summarizes EXAKT's functionality in both these decision processes.


Figure 2: Flow diagram of EXAKT. Age data is also known as "life" data, and consists of the working age and type of event (failure or suspension) defining each life ending. CM data is "condition monitoring" data. "Cost data" defines the 'penalty' or average costs associated with failure compared to the average cost of preventing the failure.

Most decisions in maintenance are driven not only by considerations of asset survival probability but also by economic factors.

Where business dynamics are concerned, managers quickly appreciate the need to optimize decisions in the face of competing objectives. A policy is a procedure (model) for making the best decisions given the evidence of the moment. Achieving value from our decision policy depends on:

1. having the right data, and


2. transforming that data into the correct (best) course of action

The maintenance engineer and his manager must, therefore, understand and agree upon the meaning of "best" in the current operating context. Defining "reliability" in the general sense of the word (not the mathematical sense), we may say that it is: The achievement of a desired production rate, quality, availability, mission survivability, at lowest cost, safely, and without infringing environmental norms.

The seven desirables: 1. production rate, 2. quality, 3. availability, 4. mission survivability, 5. lowest cost, 6. safety, 7. environmental integrity are rarely mutually inclusive. They usually conflict. If you turn up the speed knob on the production rate, this may adversely affect quality (ultimate yield). If you run your equipment to failure, it may give an acceptable availability, but could increase costs. And so on, and so forth.

The possibilities among these objectives are endless. Given this vastness of variety of outcomes of a decision process, it is no wonder that maintenance departments struggle to pinpoint the elusive "reliability" bull's eye. When faced with conflicting objectives, managers recognize the need to strike a compromise.

Compromise in maintenance leads one squarely to the topic of optimization. The EXAKT optimization process helps reduce a diversity of objectives to a common denominator, so that the decision process issues the best trade-off among several goals. In the numerical example to follow we show the way in which EXAKT balances the aims of low cost and high availability in an optimized CBM policy. But first let us discuss the subject of optimization with respect to the objective of cost.

In general, neither P nor F happen at fixed times nor under fixed conditions. Rather, they occur randomly according to probability distributions. EXAKT is a probabilistic approach that decides, based on current condition relative to an optimal hazard level, whether maintenance is needed. The difference of approaches will be explored in this article. In maintenance, the uncertainty of the time of failure is the reality. The increasing temperature of a bearing, a differential pressure increasing linearly across a filter, or the treads of an airplane tire wearing down in proportion to the number of landings, are all special deterministic cases of CBM, characterized by fixed P and F states. The development of cracks in a mechanical component is more stochastic. Maintainers must adopt tools and procedures that deal with the general, probabilistic, and more frequent cases. The more general, the more accurate.

We intend to show how the problem can be addressed clearly only when approached in a statistical way. We will talk about managing uncertainty in order to make a strong case for how the simplified or approximate (P-F interval) approach will not lead, generally, to results that deal realistically with changes in the resistance to failure.

Assumptions and models used in EXAKT

The advantage of CBM over TBM as a maintenance strategy is that it accounts for both the age of the item as well as its changing state up until the moment of decision making. We assume the item's state of health to be encoded within measurable condition indicators (which, of course, is the underlying premise of CBM).

The item's monitored indicators may be presented as a vector of time dependent random variables, Z(t).

Z(t) = (Z₁(t), Z₂(t), ... , Z_m(t)) (eq. 1)

Each variable in the vector contains the value of a certain measurement at that moment. We consider Z(t) a "process" because it changes with each set of CBM readings acquired at regular intervals of time t. Furthermore, it is a stochastic process. A stochastic process is sometimes called a random process. Unlike a deterministic process, instead of having only one possible 'reality' of how the process might evolve with time, in a stochastic process there is some indeterminacy in its future evolution. This uncertainty is described by probability distributions. There are many possibilities of where the process might go, but some paths are more probable than others. Z(t), then, is said to be an "m-dimensional stochastic covariate process'' observed at regular intervals of time, t.

We let T, a random variable, represent the failure time of the item. A primary goal of CBM is to predict T given the current age t and the current measurements of Z(t). Achieving this goal will require us to develop a statistical model that combines the stochastic behavior of the CBM readings Z(t) with a model for the hazard rate as a function of age t and the current CBM readings Z(t).

Of particular interest to us in accomplishing this objective are two theoretical models:

1. the Cox proportional hazards model (PHM) with time-dependent covariates for describing the failure behavior, and
2. the non-homogeneous Markov failure time process for describing the evolution behavior of the covariate process.

In this article we will show how these two models may be combined for the predictive purposes of CBM.

Proportional hazards model with time-dependent covariates

In EXAKT the influence of condition monitoring (CM) indicators on the failure time is modeled using a Proportional Hazards Model (PHM). First proposed by Cox in 1973 (Cox D.R., Oakes D., 1984.), the Cox PHM and its variants have become one of the most widely used tools in the statistical analysis of lifetime data in biomedical sciences and in reliability. The specific model used in EXAKT is a PHM with time-dependent covariates and a Weibull baseline hazard. It is described by the hazard function

(eq. 2)

where β>0 is the shape parameter, η>0 is the scale parameter, and γ =( γ₁,γ₂,… γ_m,) is the coefficient vector for the condition monitoring variable (covariate) vector. The parameters β, η, and γ, will need to be estimated in the numerical solution.

Markov failure time process

The physical CBM measurements of each Z_i(t) will fall into classes or states that we have set up and labeled as, for example, "new", "normal", "warning", or "danger". These designations (a common practice in CBM) constitute the state space of the stochastic process Z(t). As such, the covariate vector Z(t) can be reasonably discretized to reflect, meaningfully, each of its states. Specifically, we discretize the range of each covariate Z_i(t) into a finite number of intervals each of which has a representative value. This value can be taken as any value in an interval’s range. EXAKT takes the midpoint of each interval as the value representing the condition indicator’s state.

Define the discretized covariate process Z(t) as Z^(d)(t) = (Z₁^(d)(t), Z₂^(d)(t), ... , Z_m^(d)(t)).

such that the value of each Z_i^(d)(t) is equal to the representative value of the interval into which Z_i(t) falls.

Denote all possible values (states) of Z^(d)(t) as R₁^(z), R₂^(z), …, R_n^(z)

where R_i^(z) = (R_i1^(z), R_i2^(z), …, R_im^(z)) is a representative value of the covariate Z_j^(d)(t).

R_i^(z) represents the i^th state of the discretized covariate process Z^(d)(t).

We predict likely future states of the discretized process Z^(d) (t), by endowing it with some kind of probabilistic behavior. A non-homogeneous discrete Markov process has been shown (Bogdanoff & Kozin, 1985; Kopnov & Kanajev, 1994; Pulkkinen, 1991) to model the stochastic behavior of time dependent condition monitoring variables related to wear propagation.

In EXAKT, it is assumed that Z^(d)(t) follows a non-homogeneous Markov failure time model described by the transition probabilities

L_ij(x,t)=P(T>t, Z^(d)(t)= R_j^(z)|T>x, Z^(d)(x)= R_i^(z)) (eq. 3)

where:
x is the current working age,
t (t > x) is a future working age, and
i and j are the states of the covariates at x and t respectively.

The above expression for the transition probability from state i to state j can be read as follows: It is the probability that the item survives until t at which time the state of Z^(d)(t) is j, given that the item will have survived until x when the previous state, Z^(d)(x) was i. The transition behavior can then be displayed in a Markov chain transition probability matrix, for example, that of Table 1 in the Appendix.

Calculation of the transition probabilities

EXAKT combines the Cox PHM with the Markov failure time model described above. For the following analysis it is convenient to represent Equation 3 in the following form:

Lij(x,t)=P(T>t|T>x, Z^(d)(x)= R_i^(z))) • p_ij(x,t) (eq. 4)

where p_ij(x,t)=P(Z^(d)(t)= R_j^(z)| T>t, Z^(d)(x)= R_i^(z)) (eq. 5)

is the conditional transition probability of the process Z^(d)(t).

For a short interval of time, values of transition probabilities can be approximated as:

L_ij(x,x+Δx)=(1-h(x,R_i^(z))Δx) • p_ij(x,x+ Δx) (eq. 6)

Equation 6 means that we can, in small steps, calculate the future probabilities for the state of the covariate process Z^(d)(t). Using the hazard calculated (from Equation 2) at each successive state we determine the transition probabilities for the next small increment in time, from which we again calculate the hazard, and so on.

CBM decisions based on probability

The “conditional reliability” is the probability of survival to t given that

1. failure has not occurred prior to the current time x, and


2. CM variables at current time x are R_i^(z)

The conditional reliability function can be expressed as:

(eq. 7)

Equation 7 points out that the conditional reliability is equal to the sum of the conditional transition probabilities from state i to all possible states. Once the conditional reliability function is calculated we can obtain the conditional density from its derivative. We can also find the conditional expectation of T - t, termed the remaining useful life (RUL), as

(eq. 8)

In addition, the conditional probability of failure in a short period of time Δt can be found as

P(tZ^(d)(t))=1-R(t+ Δt|t,Z^(d)(t)) (eq. 9)

For a maintenance engineer, predictive information based on current CM data, such as RUL and probability of failure in a future time period, can be valuable for risk assessment and planning maintenance.

CBM decisions based on economics and probability

Successful businesses confronted with a variety of risk factors, optimize their policies and resources in order to achieve their ultimate objectives. An economic decision model is a rule for preventive renewal of an asset that minimizes the average per unit cost associated with maintenance (proactive and reactive) over a long time horizon. (This cost is the key performance indicator most directly related to shareholder value.) Such a rule for CBM may be reasonably expressed as a control-limit policy: perform preventive maintenance at T_d, if T_d < T; or perform reactive maintenance at T if T_d ≥ T, where

T_d=inf{t≥0:Kh(t,Z^(d)(t))≥d} (eq. 10)

K is the cost penalty associated with functional failure, h(t,Z^(d)(t) is the hazard, and d (> 0) is the risk control limit for performing preventive maintenance. Here risk is defined as the functional failure cost penalty K times the hazard rate.

The long-run expected cost of maintenance (preventive and reactive) per unit of working age will be

(eq. 11)

where C_p is the cost of preventive maintenance, C_f = C_p+K is the cost of reactive maintenance, Q(d)=P(T_d≥T) is the probability of failure prior to a preventive action, W(d)=E(min{T_d,T}) is the expected time of maintenance (preventive or reactive).

Let d* be the value of d that minimizes the right-hand side of Equation 11. It corresponds to T* = T_d*. Makis and Jardine in ref. 3 have shown that for a non-decreasing hazard function h(t,Z^(d)(t), rule T* is the best possible replacement policy (ref. 4).

Equation 10 can be re-written for the optimal control limit policy as:

T*=T_d*=inf{t≥0:Kh(t,Z^(d)(t))≥d*} (eq. 12)

For the PHM model with Weibull baseline distribution, it can be interpreted as (ref. 2))

(eq. 13)

where (eq. 14)

Ref. 2 mentions the numerical solution to Equation 13, which is described in detail in (Ref. 7) and (Ref. 8). The function

g(t)=δ^*-(β-1)ln(t) (eq. 15)

is the “warning level” function for the condition of the item reflected by a weighted sum of current values of the significant CM variables (covariates). A plot of function versus working age can be viewed as an economical decision chart which shows whether the data suggests that the item has to be replaced. In the decision chart, we approximate the value of by .

An example of a decision chart with several inspection points can be found in Figure 3. Detailed case studies based on the model discussed in this section can be found in ref. 5 and (ref. 6).



Figure 3: Sample economical decision chart (for )

The above development from (ref. 2) speaks to cost as the optimizing objective. Analogous developments have been made in EXAKT considering availability and profitability as optimizing objectives. For these two objectives, we only need to change the objective function in Equation 11 accordingly.

Specifically, for the availability objective, Equation 11 will be replaced by the availability function, defined as the ratio of uptime to the uptime plus the downtime.

(eq. 16)

where W(d) is the expected uptime, t_p is the downtime as a result of planned maintenance and t_f is the downtime as a result of maintenance forced by a functional failure. The objective is also changed to maximize , i.e., d* will be the value of d that minimizes the right-hand side of Equation 16.

For the profitability objective, Equation 11 will be replaced by the global cost function

(eq. 17)

where a_p is the cost per hour of planned down time and a_f is the cost per hour of unplanned down time. The objective is to minimize Equation 17, i.e., to find d*, which is the value of d that minimizes the right-hand side of Equation 17.

Numerical example

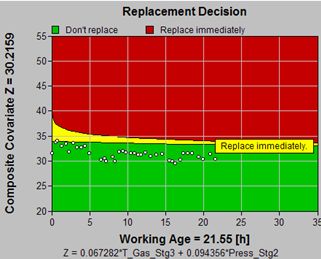

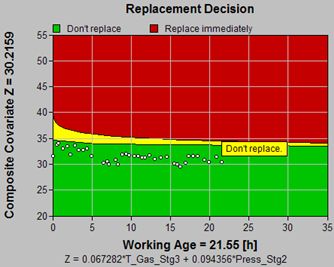

A CBM program on a fleet of Nitrogen compressors monitors the failure mode “second stage piston ring failure”. Real time data from sensors and process computers are collected in a PI historian. Work orders record the as-found state of the rings at maintenance. In the following example, four decisions are generated by the EXAKT software, depending on which of: probability alone, cost, availability, or profitability (cost and availability) has been set as the optimizing objective. The data for this example is available by contacting the author. Background information on this example and the failure mode can be found in (ref. 9).

Cost Prev. Cost Failure Cost Preventive % Expected MTBF (PF or F) Optimal 29.5473 16.0089 (54.2 % ) 13.5384 (45.8 % ) 87.6 54.7487 RTF 48.3946 0 (0.0 % ) 48.3946 (100 % 0 0.0 123.981 Saving 18.8473 (38.9 % ) -16.0089 34.8562 -83.5 -69.232

Input Parameters Replacement Policy Type Basic Cost Preventive Replacement cost C $ 1000 Failure Replacement cost C+K $ 6000 Inspection Interval h 30 Decision Parameters Recommendation Don’t maintain Expect to replace in 39.794

Any cost value on the Cost Function graph consists of a red portion, attributable to unplanned failures, and a green portion, representing the average costs associated with preventive maintenance. The green curve determines the optimal risk as its lowest point (96.7893). The table beneath the Cost Function graph summarizes the information. It compares the optimal cost ($30) and optimal mean time between asset renewals (55 h)) of the optimal policy with those ($48 and 124 h) of the "run-to-failure" policy. It quantifies the expected preventive and failure costs ($16 and $14 respectively) and the percentage of incidences (87.6% will be preventive actions while 12.4% will be failures) achieved when adhering to the optimal policy. The table's content illustrates that the optimal policy will cause us to intervene more often on the average (every 124 versus 55 h), in order to achieve a net per unit saving (of $19 or 39%).

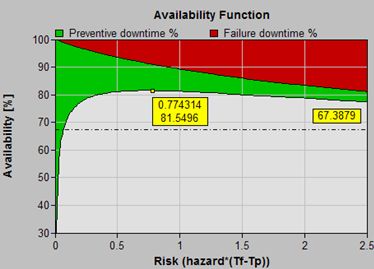

Availability % Prev. downtime Failure downtime Preventive % Expected MTBF (PF or F) Optimal 81.55 (46.93*) 9.54 (51.68 % ) 8.91 (48.32 % ) 91.5 57.5433 (10.6169**) RTF 67.39 (123.98*) 0 (0.0 % ) 32.61 (100 % 0 0.0 183.981 Saving 14.16 -9.54 23.70 -91.5 -126.437 * expected uptime, ** expected downtime

Input Parameters Replacement Policy Type Basic Availability Preventive downtime Tp h 60 Failure downtime Tf h 60 Inspection Interval h 30 Decision Parameters Recommendation Don’t maintain Expect to replace in 33.3742

The analyst must supply the parameters of this strategy, which are the fixed values for the downtimes incurred by: 1. preventive renewal (maintenance), and 2. renewal as a result of failure. The costs of materials and labor are not considered significant in this option, or they are believed to be proportional to downtimes and, thus, can be ignored. This example illustrates the trade-off made in optimizing for availability. In the minimum cost model, above, we "bought" lower overall cost by "paying" for it with more frequent intervention. We assumed that the time-to-repair was negligible, or was proportional to the cost, and therefore could be ignored. The difference between failure and preventive repair costs dictated the exact nature of the compromise in order that overall impact on the per unit production cost be minimum. In a symmetrical way, the maximium availability model focuses completely on downtime. In this example, we "bought" high availability by paying for it with more frequent intervention. We assumed that the cost of repair was negligible, or was proportional to the repair time and therefore could be ignored. The difference between failure and preventive repair times (rather than costs) dictated the exact nature of the compromise to achieve high equipment availability. The optimal strategy maximizes expected availability per unit time (defined as 100%*uptime/(uptime+downtime)).

Unit cost Availability Prev. cost Downtime Failure cost Downtime Prev. % Expected MTBF (PF or FF) Optimal 77.6856 81.16 (37.33*) 45 (58.5 % ) 12.40 (65.80 % ) 32 (41.5 % ) 6.44 (34.20 % ) 95.1 45.9968 (8.66753**) RTF 163.061 67.39 (123.98*) 0 (0.0 % ) 0 (0.0 % ) 1.6e+002 (100.0 % ) 32.61 (100.0 % ) 0.0 183.981 (60**) Saving 85.38 (52.4 % ) 13.77 -45 -12.40 1.3e+002 26.17 -95.1 -137.984 * expected uptime, ** expected downtime

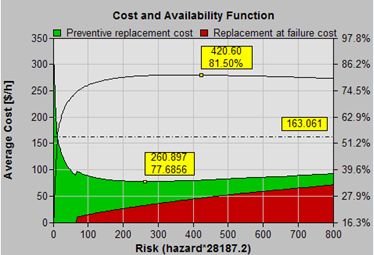

Input Parameters Replacement Policy Type Basic Cost and Availability Preventive downtime h 6 Failure downtime h 60 Failure cost fixed $ 6000 Preventive cost fixed 1000 Failure cost fixed $ 6000 Preventive downtime cost per hour $/h 200 Failure downtime cost per hour $/h 400 Inspection Interval h 30 Decision Parameters Recommendation Maintain immediately Expect to replace in 0 h

The combined cost and availability optimization option is used to minimize expected cost per unit time taking into account costs and duration of preventive and failure downtimes, and cost of downtime. This cost model allows for flexibility in setting up realistic parameters upon which to build the optimal decision model. For example, the fixed cost of failure replacement may be high (say due to the cost of a new part), but the downtime required may be short (just to replace the part) Or, by comparison, the situation may be that: the cost of preventive work can be small, but the time to complete the work (downtime) can be long. In the final analysis optimization addresses cost. The cost and availability model, permit us to consider the factors affecting cost and availability, separately. The optimization normalizes both sets of factors to ultimate cost. The best (lowest ultimate bottom line cost) is attained. Some column headings refer to both cost (black) and availability (red). In this example, the optimal expected results are: Cost: 78 (52% better than running to failure) Availability 81% (14% better than running to failure) Average running time between interventions: 46 days (138 days worse than the RTF policy)

Conclusions

The fourth option in the numerical example, optimizing for both low cost and high availability, resolves the difficult problem of deciding upon a CBM (data interpretation) policy or decision model in the light of actual maintenance and business factors. The feature encourages maintenance managers and engineers to elicit good cost and availability information because now they can use it effectively in their decision process. Maintenance and reliability engineers will apply the proposed method based on the EXAKT software to situations where abundant condition monitoring data coincides with the experience of failures and potential failures as recorded in the CMMS.

In this article, we provided an alternative to the difficult, subjective, and often impossible task of choosing a P and P-F interval for use as a CBM decision making procedure. We described a general methodology whereas Reference 1 describes only two special cases (totally random and totally age dependent) for the application of the P-F interval. In the experience of the authors a mix of random and time based behavior characterize the majority of failure modes where CBM will be of use.

Finally, it is necessary to point out that maintenance engineers, frequently, encounter a practical problem when constructing CBM decision models (or when performing any type of reliability analysis). Despite the long time use of elaborate maintenance information relational database systems, reliability analysts find that they lack life data required for study and modeling. To resolve this issue, OMDEC developed a novel process for work order completion that links the work order to the knowledge repository. It has built such a knowledge management system into the new version of the EXAKT product.

Acknowledgement

We are grateful to Dr. Dragan Banjevic of the Center for Maintenance Optimization and Reliability Excellence for his assistance and suggestions.

References

1. John Moubray, RCM II 2nd ed. Butterworth-Heinnemann, 2001 pp 164-5 "How to determine the P-F Interval ... A rational approach".

2. A.K.S. Jardine, D. Banjevic, N. Montgomery, A. Pak., Repairable system reliability: recent developments in CBM optimization, CORS / Optimization Days 2006 Joint Conference, Montreal, May 8-10, 2006

3. Makis V., Jardine A.K.S., Optimal replacement in the proportional hazards model, INFOR, Vol. 30, pp. 172–183, 1991.

4. Aven T., Bergman B., Optimal replacement times - a general set-up, Journal of Applied Probability, Vol. 23, pp. 432–442, 1986.

5. Jardine A.K.S., Banjevic D., Wiseman M., Buck S., Joseph T., Optimizing a mine haul truck wheel motors’ condition monitoring program, JQME, Vol. 7, pp. 286–301, 2001.

6. Lin D., Wiseman M., Banjevic D., Jardine A.K.S., An approach to signal processing and condition-based maintenance for gearboxes subject to tooth failure, Mechanical Systems and Signal Processing, Vol. 18, pp. 993–1007, 2004.

7. Banjevic D., Jardine A.K.S., Makis V., Ennis M., A control-limit policy and software for condition-based maintenance optimization, INFOR, Vol. 39, pp. 32–50, 2001.

8. Banjevic D., Jardine A.K.S., Calculation of reliability function and remaining useful life for a Markov failure time process, IMA Journal of Management Mathematics, [Online] doi:10.1093/imaman/dpi029, 2005.

9. Optimization of Bellis & Morcom 3rd-stage piston ring CBM model, OMDEC case study, Optimization of Bellis & Morcom 3^rd-stage piston ring CBM model, http://www.omdec.com/articles/p_recipN2Compressors.html

---
